Power Outage and Breaker Tripping in Pattaya

First identify the type of outage

• the entire street, building or common area also has no power;
• only your condo, house, villa, office or shop is affected;
• the whole property is off but nearby properties still have electricity;
• only one room, lighting circuit or group of sockets has stopped working;
• the main breaker, branch breaker, RCD or RCBO has tripped;
• power returns and switches off again when particular equipment is used.

This information helps separate an external utility or building supply problem from a fault inside the property. Do not open, bypass or alter the electricity meter, sealed equipment or electrical panel.

Why a circuit breaker trips

• the connected load exceeds what the circuit or breaker can carry;
• a short circuit or damaged connection is present;
• an appliance, water heater, pump or other device is faulty;
• water or moisture has entered wiring or equipment;
• wiring insulation, a socket, cable or terminal is damaged;
• a loose connection causes heat or unstable operation;
• the breaker is unsuitable for the circuit or has become defective;
• a new high-load device has been added without checking the existing circuit.

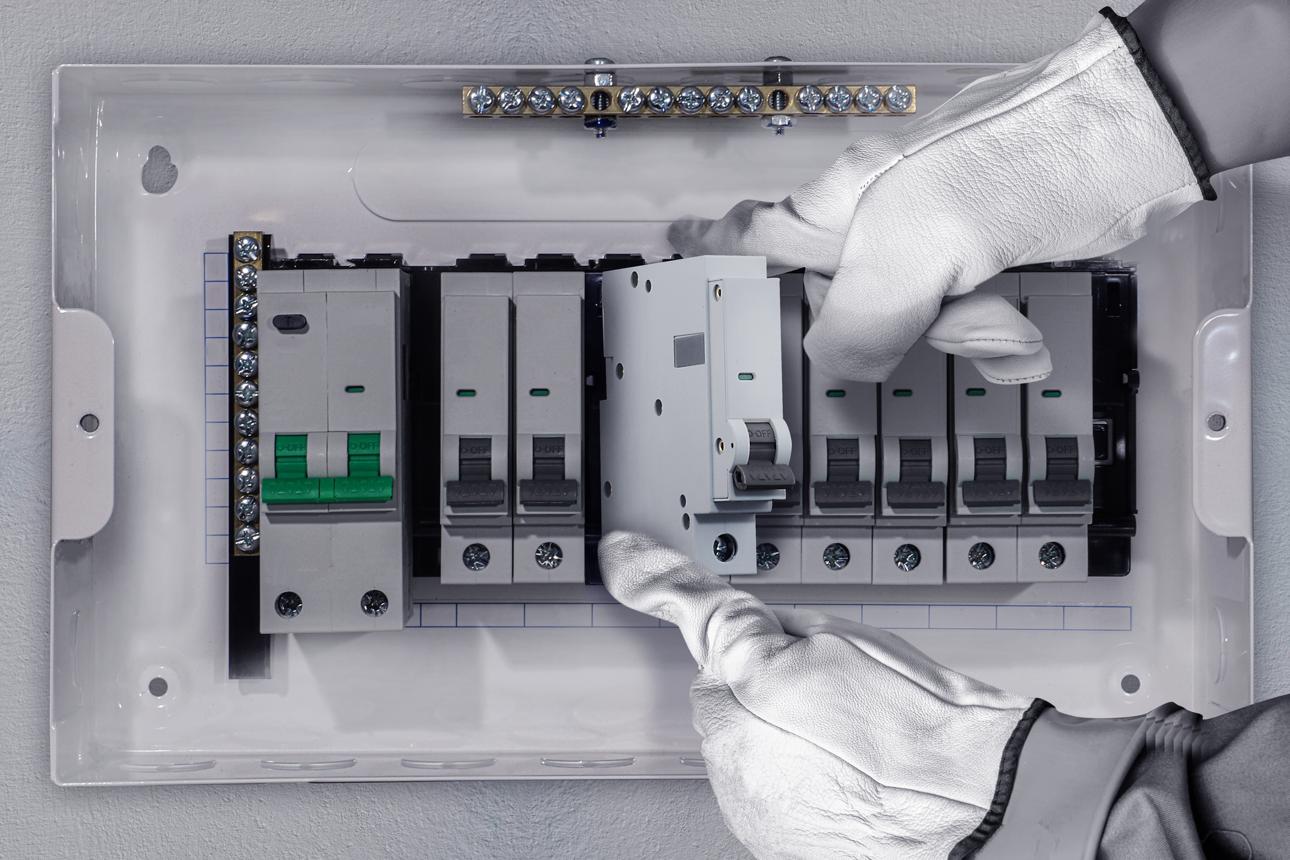

Breaker, RCD or RCBO tripping

A standard circuit breaker generally responds to overload or short-circuit current. An RCD responds to residual current or leakage conditions. An RCBO combines residual-current and overcurrent protection.

The device that has tripped provides useful information, but it does not identify the cause by itself. The connected circuit, equipment, load, wiring, neutral, grounding and protection arrangement must be checked.

Partial power outage

If lighting works but sockets do not, one room has no power, or only part of the property is affected, the problem may be limited to a branch circuit, breaker, RCD, connection, cable or distribution point.

A partial outage can also be caused by a loose or damaged connection that overheats under load. Stop using unusually warm, discoloured, sparking or unstable sockets and switches until they have been checked.

Complete power outage inside the property

If nearby properties have electricity but your entire property does not, the cause may be the main breaker, incoming connection, electrical panel, building distribution, meter-side supply or a fault that has disconnected the main protection.

Meter equipment and sealed supply components should not be opened or altered. We first determine whether the fault is inside the customer installation or requires the building management or electricity provider.

EV charger or high-load equipment trips the breaker

An EV charger, water heater, pump, air conditioner or other high-load equipment may expose insufficient circuit capacity, unsuitable cable, incorrect protection, poor connections or a fault in the equipment.

For an EV charger, we check available load, phases, cable, breaker, RCD or DC leakage protection, grounding and charger settings. The breaker should not be replaced with a higher rating unless the circuit and installation are confirmed suitable.

What we check

• which areas, circuits and equipment have lost power;
• main breaker, branch breakers, RCDs and RCBOs;
• load on the affected circuit and equipment operating at the time;
• electrical panel, terminals and accessible connections;
• signs of overheating, loose contact, damage or moisture;
• wiring, sockets, switches and connected appliances associated with the fault;
• neutral, grounding and leakage symptoms where relevant;
• whether the problem is internal, building-related or on the external supply side.

What to do before the electrician arrives

• do not repeatedly reset a breaker, RCD or RCBO that trips again;
• do not bypass protective devices or install a higher-rated breaker;
• do not touch wet equipment, exposed wiring or an open electrical panel;
• stop using equipment, sockets or switches that are hot, damaged or unstable;
• if it is safe, note which device and action caused the outage;
• keep people away from active sparks, smoke, melting or a strong burning smell;
• switch off the affected circuit or main breaker only if it can be done safely.

Diagnostics and repair

After the cause is identified, we explain the appropriate next step. Work may involve correcting a connection, repairing an accessible damaged part of the circuit, replacing a faulty protective device, separating a load, servicing connected equipment or planning a new circuit.

Active sparking, smoke, visible melting, a hot electrical panel or a strong burning smell may indicate an urgent electrical hazard. Keep away from the affected area and request urgent electrical assistance.

How the power outage service works

1. Send your location, panel photos and a description of the outage.
2. We determine whether the whole property or only one circuit is affected.
3. The panel, protection, load, wiring and associated equipment are checked.
4. We explain the cause and the practical repair or installation options.
5. After agreed work, the affected circuit and protective devices are tested again.

Service area

We diagnose power outages and breaker tripping in Pattaya and nearby Chon Buri areas, including Jomtien, Pratumnak, Central Pattaya, South Pattaya, North Pattaya, Naklua, Wongamat, East Pattaya and Na Jomtien.
